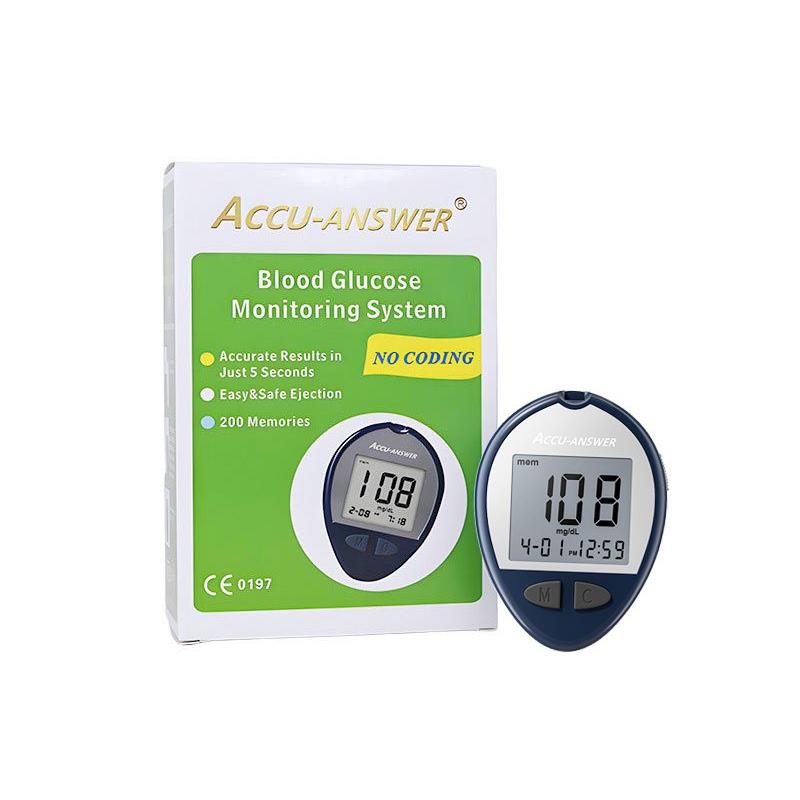

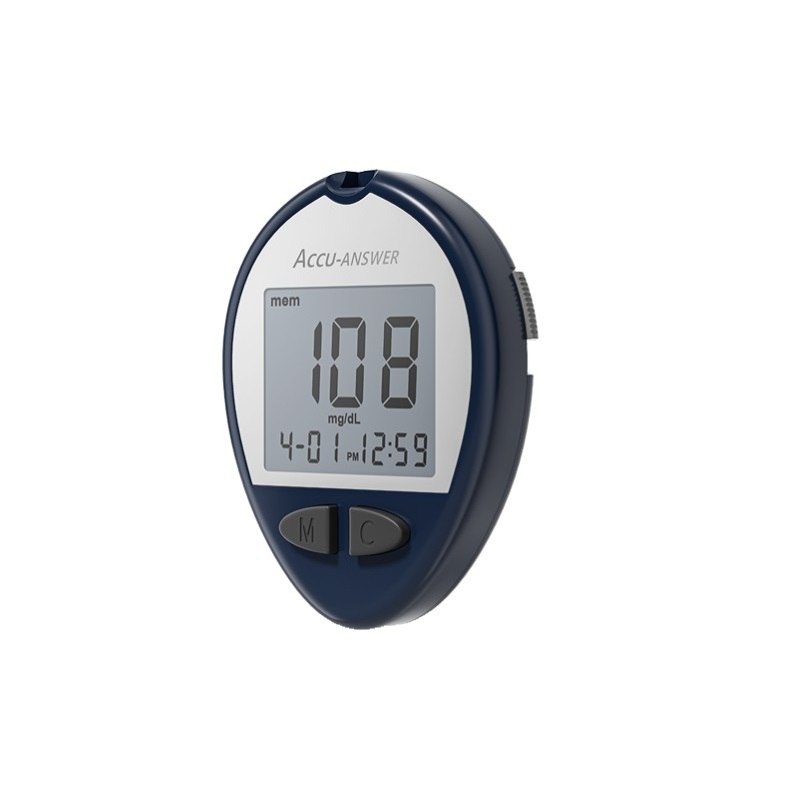

ACCU-ANSWER · Blood Glucose Meter
ZH-G04
Quantitative measurement of glucose in fresh capillary whole blood, with a 5-second test time and a minimum sample size of 1.5 µL.
- Test time
- 5 s
- Minimum sample
- 1.5 µL
- Stored results
- 500
Quickly Learn About the Product

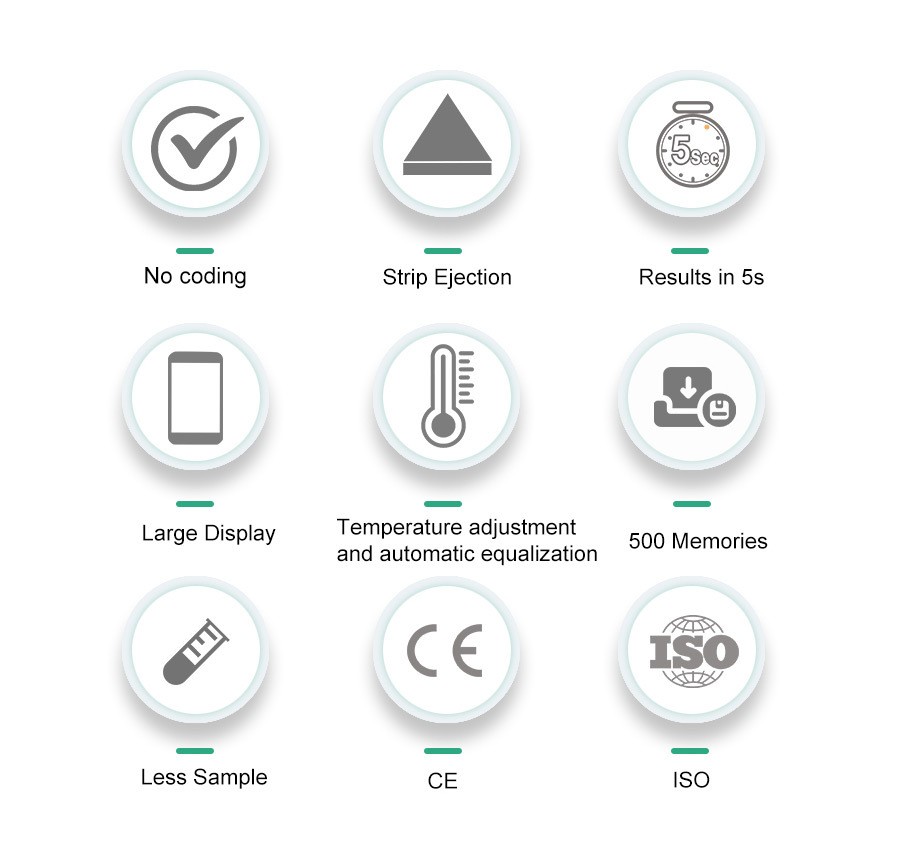

Product Highlights
Learn More Detailed Information About the Product
Instrument Specifications
Measurement
| Results range | 20–600 mg/dL (1.1–33.3 mmol/L) |
|---|---|
| Calibration | Plasma-equivalent |
| Sample | Fresh capillary whole blood |
| Minimum sample size | 1.5 µL |
| Test time | 5 seconds |
| Assay method | Glucose oxidase biosensor |
| Hematocrit | 30–55% |
| Unit of measure | mg/dL or mmol/L |
Device

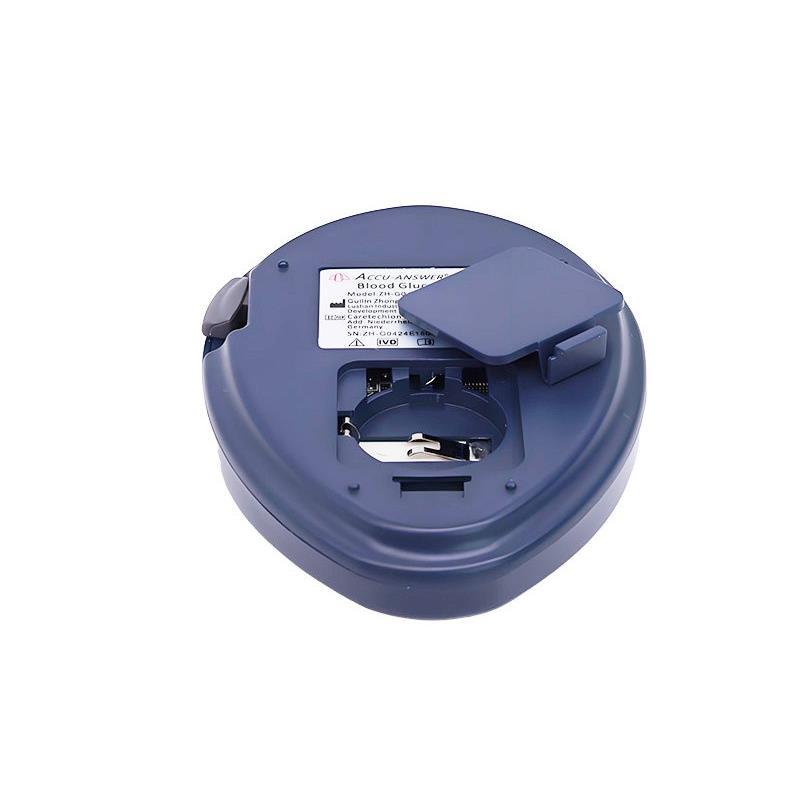

| Power source | One replaceable 3.0 V CR2032 lithium battery |
|---|---|
| Memory | 500 blood glucose and control solution test results |
| Automatic shut off | 2 minutes after last action |
| Size | 82 × 62 × 16 mm |
| Approximate weight | 45 g with battery |
Operating conditions
| Operating temperature | 10–40 °C |
|---|---|
| Relative humidity | 10–90% |
Packaging
| Quantity per carton | 50 sets |
|---|---|
| Gross weight | 10.5 kg |
| Net weight | 9.5 kg |
| Carton dimensions | 59 × 46 × 33 cm |
Intend use
The ACCU-ANSWER ZH-G04 Blood Glucose Monitoring System is intended to be used for the quantitative measurement of glucose in fresh capillary whole blood. The ZH-G04 system is intended for use outside the body (in vitro diagnostic use) by people with diabetes at home and by healthcare professionals in a clinical setting as an aid to monitor the effectiveness of diabetes control.
Learn How to Use the Product Correctly

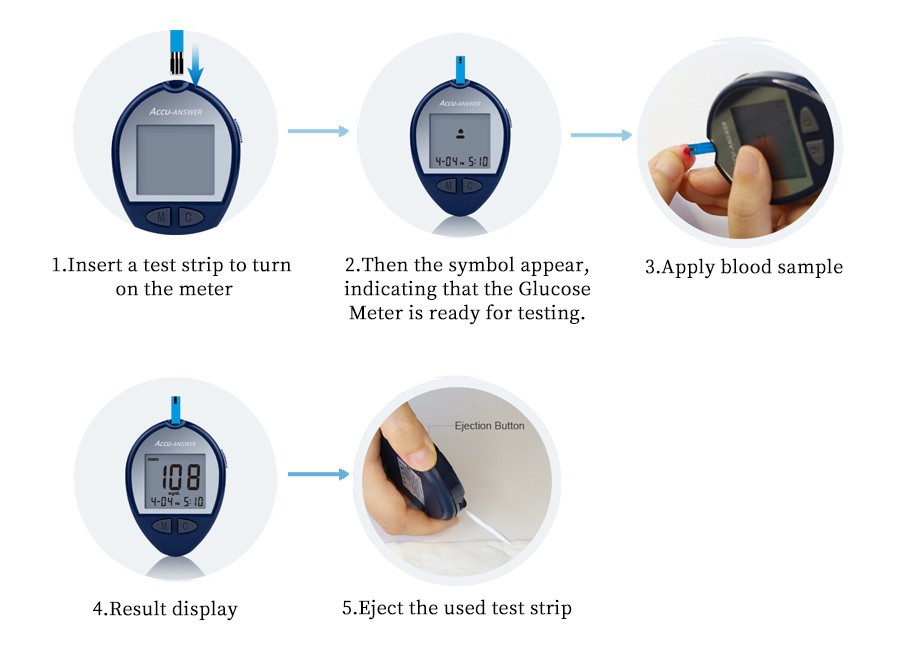

Instructions for Use
Supplementary Reference
Before You Test
Safety note: the supplied tips graphic contains blood-collection and hot-water advice that has not been verified against the ZH-G04 instructions for use. Do not rely on or follow those statements as operating guidance. Follow the instructions for use supplied with the device.
